ST901
On/Off-Highway Drive

A tough traction tread for the most rugged logging and off-highway applications

6 YEAR Warranty
  • 6 Years from Original Purchase Date*
  • 2 Recap Casing Warranty*

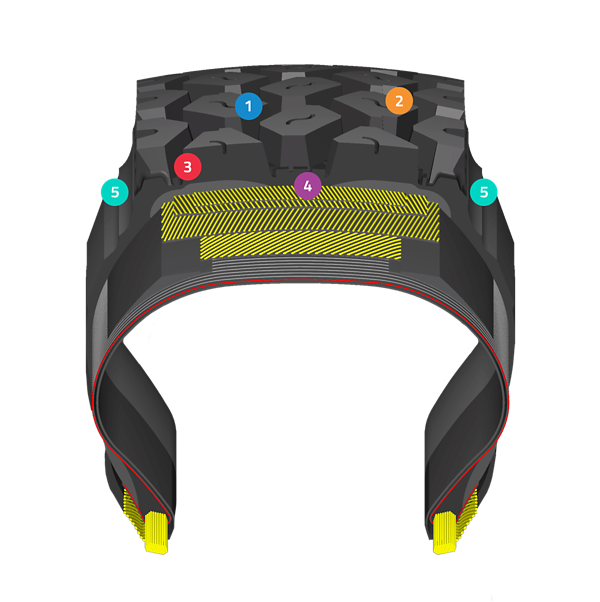

TIRE CONSTRUCTION
  1. Application-specific tread compounds resist tread chipping in high-scuff and off-road applications.
  2. Siping for increased traction.
  3. Stone ejectors protect the casing from damage in the base of the tread groove.
  4. Extra-thick layer of undertread rubber protects the belt package.
  5. Thick curbing ribs help shield the casing from sidewall damage.
TIRE CONSTRUCTION
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE

Tire Specifications

  • SIZE 11R24.5
  • PLY RATING 16
  • SERVICE DESCRIPTION 149/146K
  • MAX SPEED 68
  • TREAD DEPTH 32
PRODUCT CODE5531859
TIRE SIZE11R24.5
SERVICE DESCRIPTION149/146K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)8.25
MIN. RIM WIDTH (INCH)7.50
SINGLE MAX LOAD (LBS.)7160
REVS PER MILE468
DUAL MAX LOAD (LBS.)6610
I.P. (PSI)120
OVERALL DIAMETER (INCH)44.4
SECTION WIDTH (INCH)11.1
MIN. DUAL SPACING (INCH)12.6
TREAD DEPTH (X/32")  32
STATIC LOADED RADIUS20.7
MAX SPEED (MPH)68
