ST518
Mixed Service All-Position

Durable all-position tire for mixed service use.

6 YEAR Warranty
  • 6 Years from Original Purchase Date*
  • 2 Recap Casing Warranty*

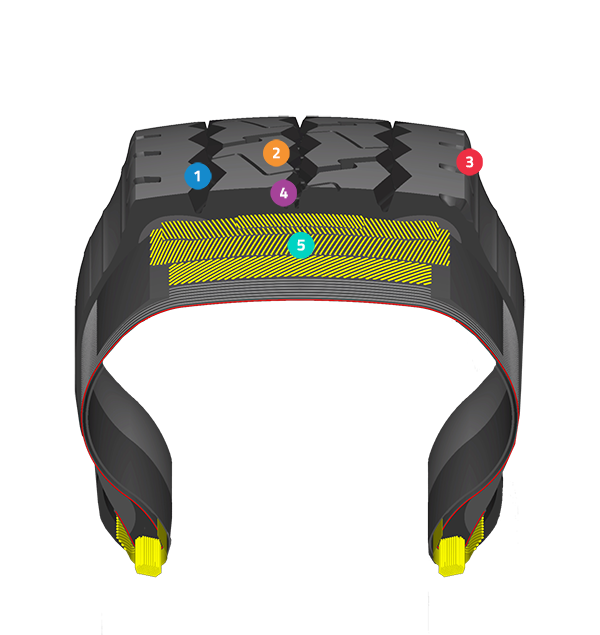

TIRE CONSTRUCTION
  1. Deep tread design increases service time.
  2. Application specific tread compound resists cutting and chipping.
  3. Shoulder notching for increase traction in Mixed Service applications.
  4. Stone ejectors protect the casing in the base of the tread groove.
  5. Four Steel Belt Package - resists punctures, increases vehicle stability, and contributes to more retread cycles.
TIRE CONSTRUCTION
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE

Tire Specifications

  • SIZE 11.00R20
  • PLY RATING 16
  • SERVICE DESCRIPTION 150/147K
  • MAX SPEED 68
  • TREAD DEPTH 21
PRODUCT CODE5531120*
TIRE SIZE11.00R20
SERVICE DESCRIPTION150/147K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)8.00
MIN. RIM WIDTH (INCH)7.50
SINGLE MAX LOAD (LBS.)7390
REVS PER MILE488
DUAL MAX LOAD (LBS.)6780
I.P. (PSI)120
OVERALL DIAMETER (INCH)42.8
SECTION WIDTH (INCH)11.7
MIN. DUAL SPACING (INCH)13.2
TREAD DEPTH (X/32")  21
STATIC LOADED RADIUS19.9
MAX SPEED (MPH)68

* Includes tube and flap

Tire Specifications

  • SIZE 12R22.5
  • PLY RATING 16
  • SERVICE DESCRIPTION 150/147K
  • MAX SPEED 68
  • TREAD DEPTH 21
PRODUCT CODE5531155
TIRE SIZE12R22.5
SERVICE DESCRIPTION150/147K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)9.00
MIN. RIM WIDTH (INCH)8.25
SINGLE MAX LOAD (LBS.)7390
REVS PER MILE488
DUAL MAX LOAD (LBS.)6780
I.P. (PSI)120
OVERALL DIAMETER (INCH)42.8
SECTION WIDTH (INCH)12.0
MIN. DUAL SPACING (INCH)13.5
TREAD DEPTH (X/32")  21
STATIC LOADED RADIUS20.0
MAX SPEED (MPH)68

Tire Specifications

  • SIZE 10.00R20
  • PLY RATING 16
  • SERVICE DESCRIPTION 146/143K
  • MAX SPEED 68
  • TREAD DEPTH 20
PRODUCT CODE5531116*
TIRE SIZE10.00R20
SERVICE DESCRIPTION146/143K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)7.50
MIN. RIM WIDTH (INCH)7.00
SINGLE MAX LOAD (LBS.)6610
REVS PER MILE502
DUAL MAX LOAD (LBS.)5800
I.P. (PSI)120
OVERALL DIAMETER (INCH)41.5
SECTION WIDTH (INCH)11.0
MIN. DUAL SPACING (INCH)12.5
TREAD DEPTH (X/32")  20
STATIC LOADED RADIUS19.5
MAX SPEED (MPH)68

* Includes tube and flap
