ST508
Mixed Service All-Position

Durable all-position tire for mixed service use.

6 YEAR Warranty
  • 6 Years from Original Purchase Date*
  • 2 Recap Casing Warranty*

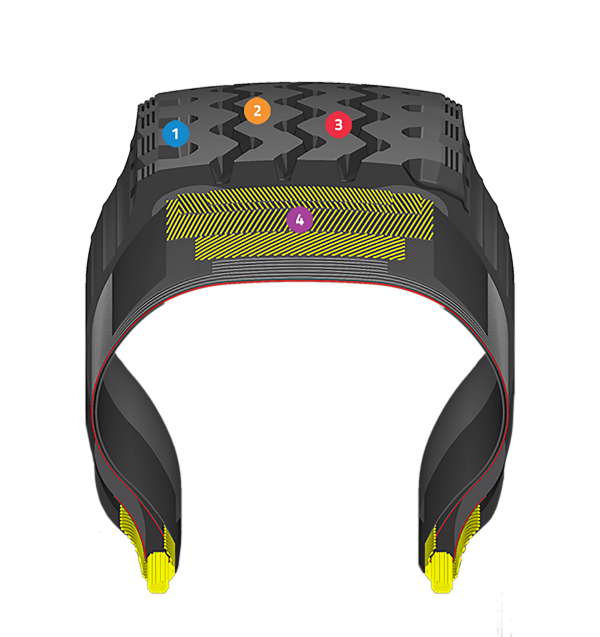

TIRE CONSTRUCTION
  1. Aggressive shoulder design for increased traction.
  2. Four Rib Zig Zag design for Mixed Service use.
  3. Application specific tread compound resists cutting and chipping.
  4. Four Steel Belt Package - resists punctures, increases vehicle stability, and contributes to more retread cycles.
TIRE CONSTRUCTION
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE

Tire Specifications

  • SIZE 11.00R24
  • PLY RATING 16
  • SERVICE DESCRIPTION 154/151K
  • MAX SPEED 68
  • TREAD DEPTH 20
PRODUCT CODE5531035*
TIRE SIZE11.00R24
SERVICE DESCRIPTION154/151K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)8.00
MIN. RIM WIDTH (INCH)7.50
SINGLE MAX LOAD (LBS.)8270
REVS PER MILE276
DUAL MAX LOAD (LBS.)7610
I.P. (PSI)120
OVERALL DIAMETER (INCH)46.9
SECTION WIDTH (INCH)11.5
MIN. DUAL SPACING (INCH)-
TREAD DEPTH (X/32")  20
STATIC LOADED RADIUS21.8
MAX SPEED (MPH)68

* Includes tube and flap

Tire Specifications

  • SIZE 12.00R20
  • PLY RATING 18
  • SERVICE DESCRIPTION 154/151K
  • MAX SPEED 68
  • TREAD DEPTH 21
PRODUCT CODE5531023*
TIRE SIZE12.00R20
SERVICE DESCRIPTION154/151K
LOAD RANGE/PLYJ/18
PREF. RIM WIDTH (INCH)8.50
MIN. RIM WIDTH (INCH)8.00
SINGLE MAX LOAD (LBS.)8270
REVS PER MILE474
DUAL MAX LOAD (LBS.)7610
I.P. (PSI)120
OVERALL DIAMETER (INCH)44.1
SECTION WIDTH (INCH)12.1
MIN. DUAL SPACING (INCH)14.2
TREAD DEPTH (X/32")  21
STATIC LOADED RADIUS20.5
MAX SPEED (MPH)68

* Includes tube and flap

Tire Specifications

  • SIZE 11.00R22
  • PLY RATING 16
  • SERVICE DESCRIPTION 150/146K
  • MAX SPEED 68
  • TREAD DEPTH 20
PRODUCT CODE5531032*
TIRE SIZE11.00R22
SERVICE DESCRIPTION150/146K
LOAD RANGE/PLYH/16
PREF. RIM WIDTH (INCH)8.00
MIN. RIM WIDTH (INCH)7.50
SINGLE MAX LOAD (LBS.)7830
REVS PER MILE462
DUAL MAX LOAD (LBS.)7160
I.P. (PSI)120
OVERALL DIAMETER (INCH)44.7
SECTION WIDTH (INCH)11.7
MIN. DUAL SPACING (INCH)13.0
TREAD DEPTH (X/32")  20
STATIC LOADED RADIUS21.1
MAX SPEED (MPH)68

* Includes tube and flap
