ST518
Mixed Service All-Position
Durable all-position tire for mixed service use.
6
YEAR
Warranty
- 6 Years from Original Purchase Date*
- 2 Recap Casing Warranty*

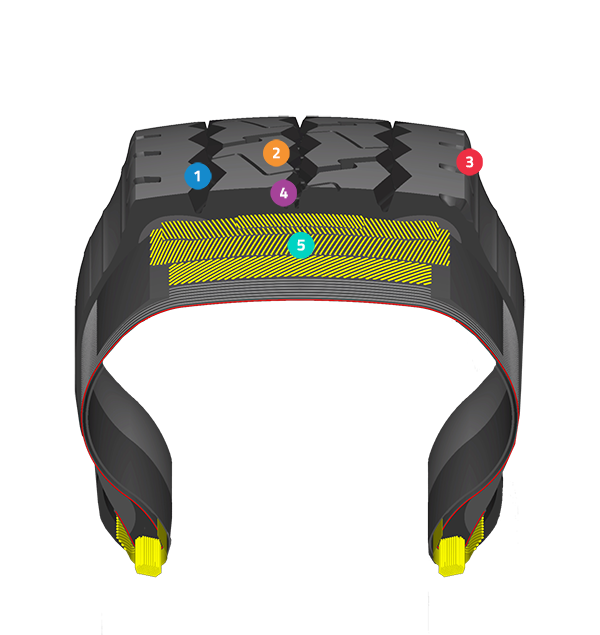

TIRE CONSTRUCTION
- Deep tread design increases service time.
- Application specific tread compound resists cutting and chipping.
- Shoulder notching for increase traction in Mixed Service applications.
- Stone ejectors protect the casing in the base of the tread groove.
- Four Steel Belt Package - resists punctures, increases vehicle stability, and contributes to more retread cycles.
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE
FIND MY TIRE SIZE
Tire Specifications
12R22.5
Change Size
- SIZE 12R22.5
- PLY RATING 16
- SERVICE DESCRIPTION 152/147K
- MAX SPEED 68
- TREAD DEPTH 21
| PRODUCT CODE | SUMI-5531155 |
|---|---|
| TIRE SIZE | 12R22.5 |
| SERVICE DESCRIPTION | 152/147K |
| LOAD RANGE/PLY | H/16 |
| PREF. RIM WIDTH (INCH) | 9.00 |
| MIN. RIM WIDTH (INCH) | 8.25 |
| SINGLE MAX LOAD (LBS.) | 7390 |
| REVS PER MILE | 488 |
| DUAL MAX LOAD (LBS.) | 6780 |
|---|---|
| I.P. (PSI) | 120 |
| OVERALL DIAMETER (INCH) | 42.8 |
| SECTION WIDTH (INCH) | 12.0 |
| MIN. DUAL SPACING (INCH) | 13.5 |
| TREAD DEPTH (X/32") | 21 |
| STATIC LOADED RADIUS | 20.0 |
| MAX SPEED (MPH) | 68 |
